动手实现一个 WebSocket 服务器

map $http_upgrade $connection_upgrade {
  default upgrade;
  '' close;
}
server {
  listen 8000;
  location / {
    proxy_pass http://localhost:4000;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $connection_upgrade;
  }
}

<iframe src="http://localhost:8080/iframe"></iframe>
<script>
  const xhr = new XMLHttpRequest()
  xhr.open('GET', 'http://localhost:8080/normal')
  xhr.send()
  xhr.onreadystatechange = () => {
    if (xhr.readyState === 4) {
      console.log(xhr.responseText)
    }
  }
</script>

const http = require('http')
const url = require('url')

http
  .createServer((req, res) => {
    const { pathname } = url.parse(req.url)
    if (pathname === '/favicon.ico') return false
    console.log(`visit: ${pathname}`)

    if (pathname === '/iframe') {
      res.setHeader('Content-Type', 'text/html;charset=utf-8')
      setInterval(() => {
        res.write(`<script>console.log('${new Date()}')</script>`)
      }, 1000)
    }

    if (pathname === '/normal') {
      res.setHeader('Access-Control-Allow-Origin', '*')
      res.setHeader('Access-Control-Allow-Methods', 'GET, POST, PUT, DELETE, OPTIONS')
      res.writeHead(200, { 'Content-Type': 'text/plain' })
      res.write('hello world')
      res.end()
    }
  })
  .listen(8080)

# Request
GET /chat
Host: javascript.info
Upgrade: websocket
Connection: Upgrade
Origin: https://javascript.info
Sec-WebSocket-Key: Iv8io/9s+lYFgZWcXczP8Q==
Sec-WebSocket-Version: 13
Sec-WebSocket-Extensions: deflate-frame
Sec-WebSocket-Protocol: soap, wamp

# Response
101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept: hsBlbuDTkk24srzEOTBUlZAlC2g=
Sec-WebSocket-Extensions: deflate-frame
Sec-WebSocket-Protocol: soap

GET ws://localhost:3000/ HTTP/1.1
Host: localhost:3000
Connection: Upgrade
Pragma: no-cache
Cache-Control: no-cache
User-Agent: Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/96.0.4664.110 Safari/537.36
Upgrade: websocket
Origin: http://localhost:63342
Sec-WebSocket-Version: 13
Accept-Encoding: gzip, deflate, br
Accept-Language: en,ja;q=0.9,zh;q=0.8,zh-CN;q=0.7
Sec-WebSocket-Key: hFP3hhcWJNLBqU+rCnHPng==
Sec-WebSocket-Extensions: permessage-deflate; client_max_window_bits

HTTP/1.1 101 Switching Protocols
Upgrade: websocket
Connection: Upgrade
Sec-WebSocket-Accept: 8XodYgYF1B62DPQYUIi5VJu/vCI=

const net = require('net') // net 模块提供一个异步的网络 API 用来创建基于流的 TCP 或者 IPC(Inter Process Communication) 的服务端或者客户端 https://blog.csdn.net/manhua253/article/details/4219655
const crypto = require('crypto') // crypto 模块提供了一些加密和解密的方法
const { Buffer } = require('buffer')

// 解析请求头
function parseHeader(data) {
  const header = {}
  const lines = data.split('\r\n').filter((line) => line)
  lines.shift() // 去除第一行请求行
  lines.forEach((line) => {
    const [key, value] = line.split(': ')
    header[key.toLowerCase()] = value
  })
  return header
}

const server = net.createServer((socket) => {
  // console.log(socket);
  socket.once('data', (buffer) => {
    console.log(Object.prototype.toString.call(buffer)) // 确定 buffer 的类型 Uint8Array
    const str = buffer.toString()
    const headers = parseHeader(str) // 解析请求头
    console.log(headers) // 观察一下请求头

    if (headers.upgrade !== 'websocket') {
      console.log('不是 websocket 请求')
      socket.end('HTTP/1.1 400 Bad Request\r\n\r\n')
    } else if (headers['sec-websocket-version'] !== '13') {
      console.log('不支持的 websocket 版本')
      socket.end('HTTP/1.1 426 Upgrade Required\r\nSec-WebSocket-Version: 13\r\n\r\n')
    } else {
      const GUID = '258EAFA5-E914-47DA-95CA-C5AB0DC85B11'
      const key = headers['sec-websocket-key']
      const acceptKey = crypto
        .createHash('sha1') // 创建 sha1 hash 对象
        .update(key + GUID) // 更新 hash 对象内容
        .digest('base64') // 生成摘要
      const response = `HTTP/1.1 101 Switching Protocols\r\nUpgrade: websocket\r\nConnection: Upgrade\r\nSec-WebSocket-Accept: ${acceptKey}\r\n\r\n`
      socket.write(response)
      console.log(response)

      let maskingKey = []

      socket.on('data', (msgBuffer) => {
        // 监听前端发来的数据
      })

      console.log(maskingKey)
    }
  })
})
server.listen(3000) // 监听端口

j = i MOD 4
transformed-octet-i = original-octet-i XOR masking-key-octet-j

// utf-8 转字符串
function utf8ToString(buffer) {
  console.log(buffer)
  let result = ''
  for (let i = 0; i < buffer.length; i += 1) {
    if (buffer[i] >> 7 === 0) {
      result += String.fromCodePoint(buffer[i])
    }
    if (buffer[i] >> 5 === 0b110) {
      const codePoint = ((buffer[i] & 0x1f) << 6) | (buffer[i + 1] & 0x3f)
      result += String.fromCodePoint(codePoint)
      i += 1
    }
    if (buffer[i] >> 4 === 0b1110) {
      const codePoint =
        ((buffer[i] & 0xf) << 12) | ((buffer[i + 1] & 0x3f) << 6) | (buffer[i + 2] & 0x3f)
      result += String.fromCodePoint(codePoint)
      i += 2
    }
    if (buffer[i] >> 3 === 0b11110) {
      const codePoint =
        ((buffer[i] & 0xf) << 18) |
        ((buffer[i + 1] & 0x3f) << 12) |
        ((buffer[i + 2] & 0x3f) << 6) |
        (buffer[i + 3] & 0x3f)
      try {
        result += String.fromCodePoint(codePoint)
      } catch (e) {
        console.log(buffer[i], buffer[i + 1], buffer[i + 2], buffer[i + 3])
      }
      i += 3
    }
  }
  return result
}

// 字符串转 utf-8
function stringToUtf8(str) {
  const { length } = str
  const result = []
  for (let i = 0; i < length; i += 1) {
    const codePoint = str.codePointAt(i)
    if (codePoint <= 0x7f) {
      result.push(codePoint & 0x7f)
    } else if (codePoint >= 0x80 && codePoint <= 0x7ff) {
      result.push(((codePoint >> 6) & 0x1f) | 0xc0)
      result.push((codePoint & 0x3f) | 0x80)
    } else if (codePoint >= 0x800 && codePoint <= 0xffff) {
      result.push(((codePoint >> 12) & 0xf) | 0xe0)
      result.push(((codePoint >> 6) & 0x3f) | 0x80)
      result.push((codePoint & 0x3f) | 0x80)
    } else if (codePoint >= 0x10000 && codePoint <= 0x10ffff) {
      result.push(((codePoint >> 18) & 0x7) | 0xf0)
      result.push(((codePoint >> 12) & 0x3f) | 0x80)
      result.push(((codePoint >> 6) & 0x3f) | 0x80)
      result.push((codePoint & 0x3f) | 0x80)
      i += 1
    }
  }
  return Uint8Array.from(result)
}

// 带掩码的数据的编解码，编解码的方式都一样的
function maskCodec(data, mask) {
  if (mask.length !== 4) return data
  const { length } = data
  const result = new Uint8Array(length)
  for (let i = 0; i < length; i += 1) {
    result[i] = data[i] ^ mask[i % 4]
  }
  return result
}

/**
 * @description: 解封数据帧，主要是根据 payloadLength 和 maskingKey 将 payload 解码为对应的 utf-8 编码或者二进制数据 TODO: 此处只是一个简单的实现，没有处理连续帧的情况
 * @param data (数据帧)
 * @return: utf-8 对应的字符串或者二进制数据
 */

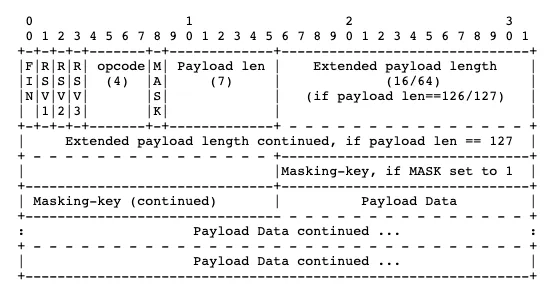

function decodeWebSocketFrame(data) {
  const frame = {
    isFinal: (data[0] >> 7) & 1, // 是否为最后一帧
    rsv1: (data[0] >> 6) & 1, // 必须为0 除非扩展了非 0 值的含义的扩展
    rsv2: (data[0] >> 5) & 1, // 同上
    rsv3: (data[0] >> 4) & 1, // 同上
    opcode: data[0] & 0xf, // 帧类型 %x0 表示一个连续帧（接续上一个帧） %x1 为文本帧 %x2 为二进制帧 %x3-7 保留 %x8 表示连接关闭 %x9 为ping帧 %xA 为pong帧 %xB-F 保留
    mask: (data[1] >> 7) & 1, // 是否有掩码
    payloadLength: data[1] & 0x7f, // 帧长度 0-125 则为精确长度，如果为126 则后面两个字节为长度 如果为127 则后面8个字节为长度
    extendedPayloadLength:
      // eslint-disable-next-line no-nested-ternary
      data[1] === 0x7f ? data.readUIntBE(2, 2) : data[1] === 0xff ? data.readUIntBE(2, 8) : 0, // 扩展长度
    maskingKey: [data[2], data[3], data[4], data[5]], // 掩码
    maskedPayload: data.slice(6) // 掩码后的数据
  }

  // payloadLength 为 126 则后面 2 字节的 16 位无符号整数为 payloadLength
  if (frame.payloadLength === 0x7e) {
    frame.payloadLength = data.readUIntBE(2, 2)
    frame.maskingKey = [data[4], data[5], data[6], data[7]]
    frame.maskedPayload = data.slice(8)
  }

  // payloadLength 为 127 则后面 8 字节的 64 位无符号整数(最高位必须为 0)为 payloadLength
  if (frame.payloadLength === 0x7f) {
    frame.payloadLength = data.readUIntBE(2, 8)
    frame.maskingKey = [data[10], data[11], data[12], data[13]]
    frame.maskedPayload = data.slice(14)
  }

  frame.unMaskedPayload = maskCodec(frame.maskedPayload, frame.maskingKey) // 解码
  console.log(frame)
  return frame
}

/**
 * @description: 这里的分别测试了发送单帧和连续帧的两种情况
 * 这里我设置了封装帧的时候可以设置掩码，实际服务端向客服端发送的数据的时候浏览器不一定支持用掩码
 * 比如 chrome，如果你用掩码就会报错 `A server must not mask any frames that it sends to the client.` 参考 https://stackoverflow.com/a/16935108/8854649
 * @param maskingKey: 掩码，如果不需要用掩码则传入 [] 即可
 * @param data1: 第一帧的数据
 * @param data2: 第二帧的数据（optional）
 * @return result 封装好的帧数据
 */
function encodeWebsocketFrame(maskingKey, data1, data2) {
  let result
  const mask = maskingKey && maskingKey.length === 4 ? maskingKey : []
  if (data2) {
    const dataBuf1 = stringToUtf8(data1)
    const dataBuf2 = stringToUtf8(data2)
    const frame1 = Buffer.concat(
      [
        Buffer.from([0b00000001, dataBuf1.length + (mask.length ? 0b10000000 : 0), ...mask]),
        maskCodec(dataBuf1, mask)
      ],
      2 + mask.length + dataBuf1.length
    )
    const frame2 = Buffer.concat(
      [
        Buffer.from([0b10000000, dataBuf2.length + (mask.length ? 0b10000000 : 0), ...mask]),
        maskCodec(dataBuf2, mask)
      ],
      2 + mask.length + dataBuf2.length
    )
    result = [frame1, frame2]
  } else {
    const dataBuf = stringToUtf8(data1)
    result = Buffer.concat(
      [
        Buffer.from([0b10000001, dataBuf.length + (mask.length ? 0b10000000 : 0), ...mask]),
        maskCodec(dataBuf, mask)
      ],
      2 + mask.length + dataBuf.length
    )
  }
  console.log(result)
  return result
}
